02 · What Are Convolutional Neural Networks?

notebook

Author

Haky Im

Published

April 1, 2026

Modified

April 15, 2026

Note: If the notebook doesn’t render correctly, click Open with → Google Colaboratory in the top-right of the Google Drive preview.

Learning Objectives

Understand what a 1D convolution does: filter, stride, output shape
See how shared weights create translation invariance
Build a CNN in PyTorch with Conv1d, ReLU, and pooling
Train a CNN to detect a pattern in a synthetic signal

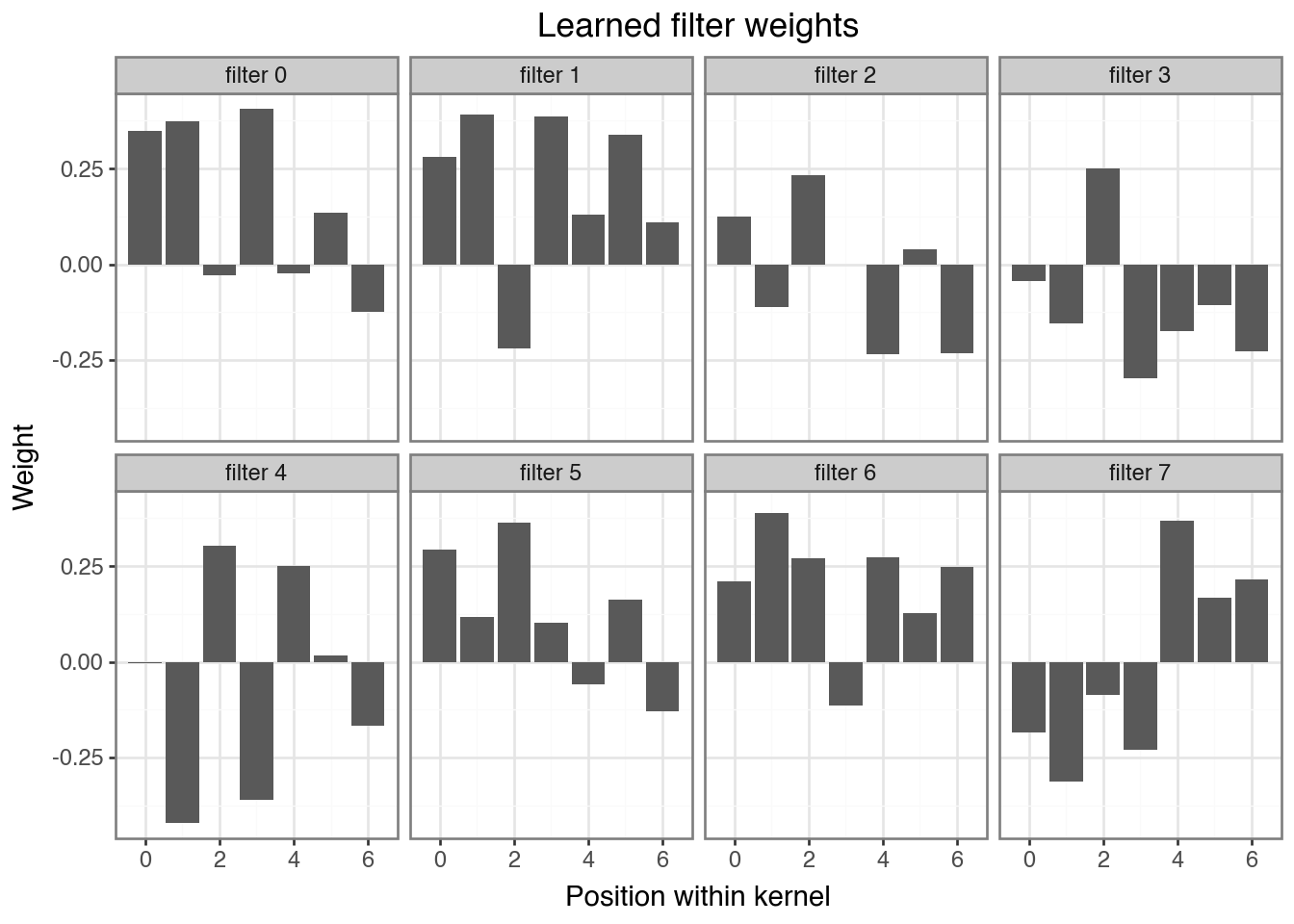

Visualize what a learned filter responds to

This notebook uses a pure numerical signal — no DNA yet. The same mechanics apply exactly when we switch to DNA sequences in notebook-03.

Install and load packages

if False:
    %pip install torch plotnine numpy scikit-learn

import numpy as np
import torch
from torch import nn
import torch.nn.functional as F
from plotnine import ggplot, aes, geom_line, geom_tile, facet_wrap, labs, theme_bw, geom_col
import pandas as pd

# use GPU if available (cuda = NVIDIA, mps = Apple Silicon), otherwise CPU
if torch.cuda.is_available():
    device = torch.device('cuda')
elif hasattr(torch.backends, 'mps') and torch.backends.mps.is_available():
    device = torch.device('mps')
else:
    device = torch.device('cpu')

print(f"Using device: {device}")

Using device: mps

Part 1: What Does Convolution Do?

DNA connection: a CNN filter sliding over a signal is exactly the same operation as scanning a sequence for a transcription factor binding motif. The filter learns the motif shape from data.

The core idea

In a fully connected layer, every input connects to every output — N \times M weights.

In a convolutional layer, a small filter (also called a kernel) slides across the input, producing one output value per position using the same weights at every position.

Input:   [x1  x2  x3  x4  x5  x6  x7  x8]
Filter:  [w1  w2  w3]   (kernel_size = 3)

Step 1:  out[0] = x1*w1 + x2*w2 + x3*w3
Step 2:  out[1] = x2*w1 + x3*w2 + x4*w3
Step 3:  out[2] = x3*w1 + x4*w2 + x5*w3
...

The filter slides across the input. At each position it computes a weighted sum. The same weights [w_1, w_2, w_3] are used everywhere — this is weight sharing.

Output length formula

For an input of length L, kernel size k, stride s=1, no padding:

\text{output length} = L - k + 1

For L=8, k=3: output length = 8 - 3 + 1 = 6.

Convolution by hand

Let’s implement this manually to see exactly what Conv1d does internally.

# A tiny input signal and a filter
signal = np.array([0.0, 0.2, 0.8, 1.0, 0.9, 0.3, 0.1, 0.0])
filt   = np.array([-1.0, 0.0, 1.0])  # detects a rising edge: computes signal[i+2] - signal[i]

# Manually slide the filter across the signal
output = []
for i in range(len(signal) - len(filt) + 1):
    val = np.dot(signal[i : i + len(filt)], filt)
    output.append(val)

print("Input length :", len(signal))
print("Filter length:", len(filt))
print("Output length:", len(output))   # 8 - 3 + 1 = 6
print("Output values:", np.round(output, 2))

Input length : 8
Filter length: 3
Output length: 6
Output values: [ 0.8  0.8  0.1 -0.7 -0.8 -0.3]

Discuss: The output is large and positive where the signal rises — [-1, 0, 1] computes signal[i+2] - signal[i]. Changing the filter weights detects different patterns.

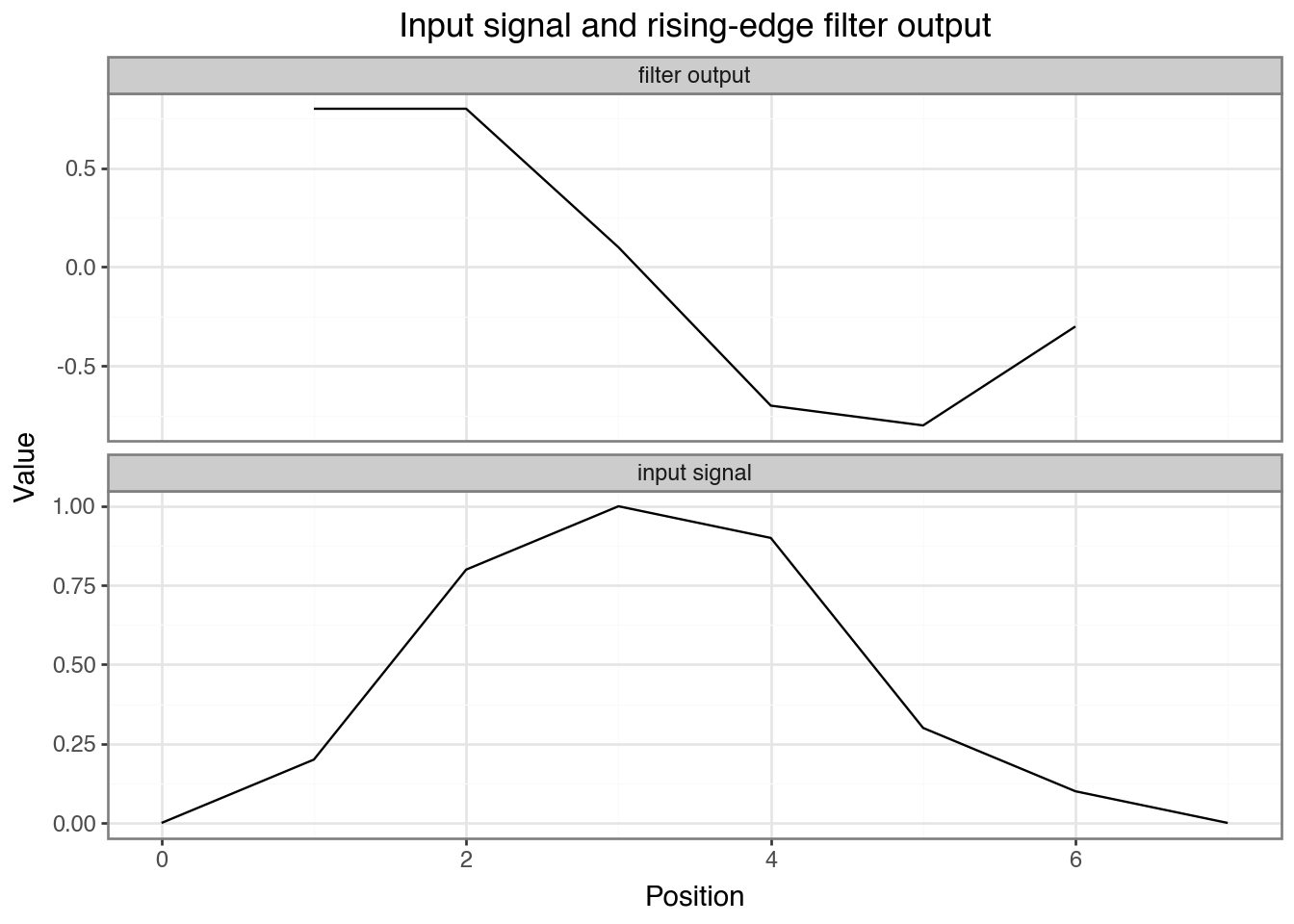

Plotting input and filter output side by side shows where the rising-edge filter fires.

# Plot input and filter output together
offset = (len(filt) - 1) / 2   # center the shorter output on the input axis
plot_df = pd.DataFrame({
    'position': list(range(len(signal))) + [i + offset for i in range(len(output))],
    'value':    list(signal) + output,
    'series':   ['input signal'] * len(signal) + ['filter output'] * len(output)
})

(ggplot(plot_df, aes(x='position', y='value'))
 + geom_line()
 + facet_wrap('~series', ncol=1, scales='free_y')
 + theme_bw()
 + labs(title="Input signal and rising-edge filter output", x="Position", y="Value"))

Exercise

Change filt to [1.0, 1.0, 1.0] (a smoothing/averaging filter). What does the output represent now?

Multiple filters

A conv layer typically has many filters, each learning to detect a different feature. The output has one channel per filter.

Input:  shape (batch, 1, seq_len)
Conv1d: n_filters kernels  →  shape (batch, n_filters, out_len)

This gives us a feature map: at each position, how strongly did each feature appear?

Part 2: Conv1d in PyTorch

Note on shapes: Conv1d expects input as (batch, channels, length). The channel dimension comes second — a common source of confusion. For a single numeric signal, channels=1. For one-hot DNA, channels=4.

Shapes and parameters

# in_channels=1 (one signal), out_channels=4 (four filters), kernel_size=5
conv = nn.Conv1d(in_channels=1, out_channels=4, kernel_size=5)

# Each filter has (in_channels * kernel_size) weights + 1 bias → times out_channels
n_params = sum(p.numel() for p in conv.parameters())
print(f"Parameters: {n_params}")   # (1 * 5 + 1) * 4 = 24

x = torch.randn(1, 1, 50)   # batch=1, channels=1, length=50
out = conv(x)
print(f"Input shape:  {x.shape}")
print(f"Output shape: {out.shape}")   # (1, 4, 46)  =  50 - 5 + 1 = 46

Parameters: 24
Input shape:  torch.Size([1, 1, 50])
Output shape: torch.Size([1, 4, 46])

Discuss: 4 filters of size 5 on a length-50 input gives output shape (1, 4, 46) with only 24 parameters total — far fewer than a fully connected layer would need.

Exercise

Change kernel_size to 10 and out_channels to 8. Before running: (1) predict the output shape, (2) predict the number of parameters. Then verify.

Adding ReLU and pooling

Stacking ReLU and max pooling after conv shows how each step changes the tensor shape.

x    = torch.randn(1, 1, 50)
conv = nn.Conv1d(in_channels=1, out_channels=4, kernel_size=5)
pool = nn.MaxPool1d(kernel_size=2)

after_conv = F.relu(conv(x))
after_pool = pool(after_conv)
print(f"After conv+relu: {after_conv.shape}")   # (1, 4, 46)
print(f"After maxpool:   {after_pool.shape}")   # (1, 4, 23)

After conv+relu: torch.Size([1, 4, 46])
After maxpool:   torch.Size([1, 4, 23])

Discuss: MaxPool1d(kernel_size=2) takes the max of every 2 values, halving the length. This reduces dimensionality and makes detection robust to small shifts — if the pattern moves by 1 position, the max value is unchanged.

Part 3: The Task — Detect a Pattern Anywhere in a Signal

Now that we know what a conv layer does mechanically, here’s why it’s the right tool: a filter that has learned to recognize a pattern will fire wherever that pattern appears — at position 5 or position 80, the same weights do the work. An MLP has no such guarantee; it would need to learn a separate detector for every possible position.

We’ll create a dataset where some signals contain a specific “spike” embedded at a random position. The CNN must detect it regardless of where it appears — this is translation invariance in action.

DNA connection: a transcription factor binding motif can appear anywhere in a 300 bp sequence. The CNN doesn’t need to know where — it scans.

Generate the data

We generate 2000 sequences of length 100: half contain the spike pattern embedded at a random position, half are pure noise.

np.random.seed(42)
torch.manual_seed(42)

SEQ_LEN   = 100
SPIKE     = np.array([0.0, 0.3, 0.8, 1.0, 0.8, 0.3, 0.0])  # pattern to detect
N_SAMPLES = 2000

def make_dataset(n_samples, seq_len, spike, noise_std=0.1):
    X = np.random.normal(0, noise_std, size=(n_samples, seq_len)).astype(np.float32)  # float32 = PyTorch default
    y = np.zeros(n_samples, dtype=np.int64)
    for i in range(n_samples // 2):                          # first half → positive class
        pos = np.random.randint(0, seq_len - len(spike))    # pick a random position
        X[i, pos : pos + len(spike)] += spike                # inject the spike at that position
        y[i] = 1
    return X, y

X, y = make_dataset(N_SAMPLES, SEQ_LEN, SPIKE)
print(f"X shape: {X.shape},  class balance: {y.mean():.2f}")

X shape: (2000, 100),  class balance: 0.50

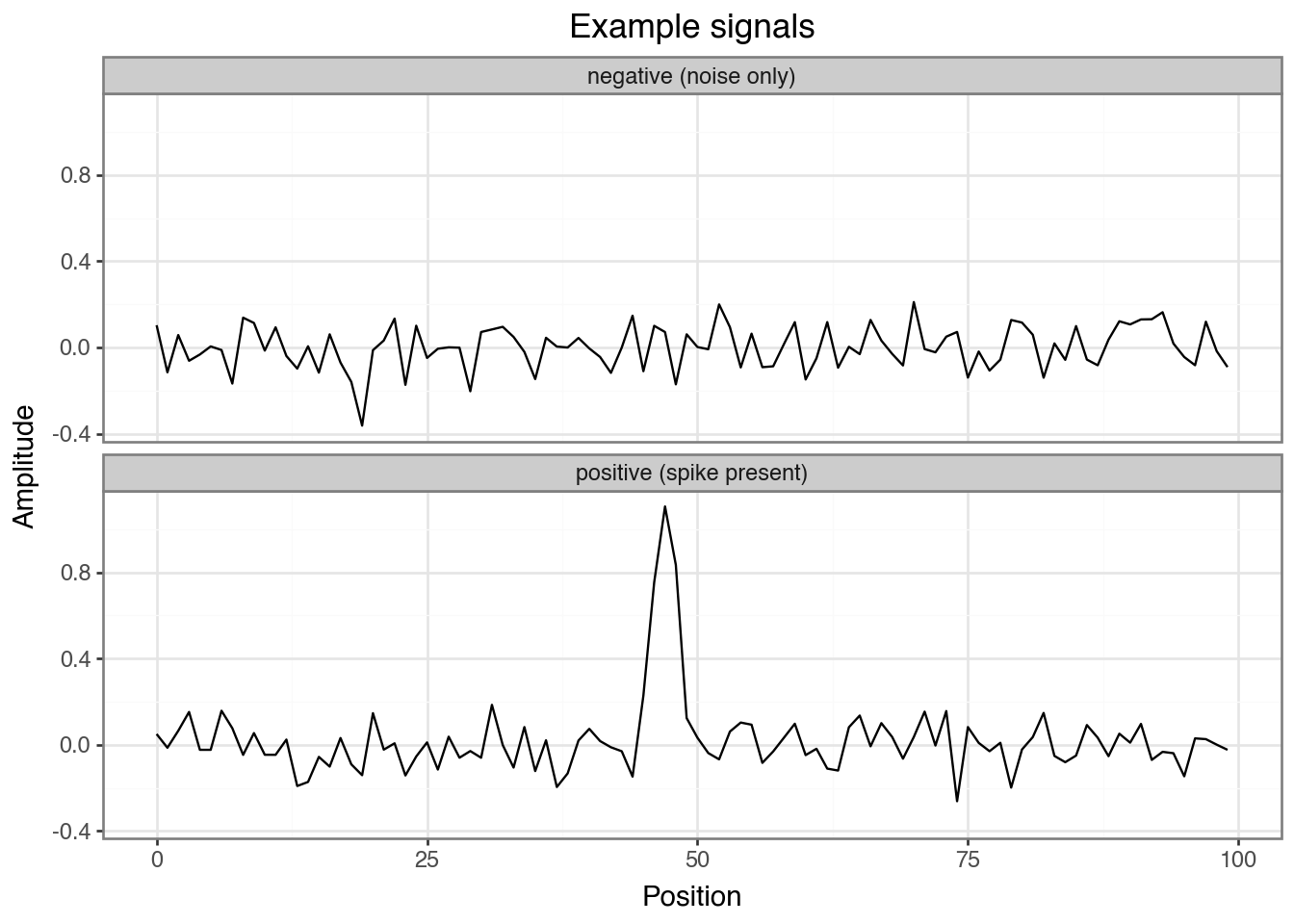

Visualize a few examples

examples = pd.DataFrame({
    'position': list(range(SEQ_LEN)) * 2,
    'amplitude': list(X[0]) + list(X[N_SAMPLES // 2]),
    'label': ['positive (spike present)'] * SEQ_LEN + ['negative (noise only)'] * SEQ_LEN
})

(ggplot(examples, aes(x='position', y='amplitude'))
 + geom_line()
 + facet_wrap('~label', ncol=1)
 + theme_bw()
 + labs(title="Example signals", x="Position", y="Amplitude"))

Discuss: Can you spot the spike in the positive example? How hard would it be to find it visually across thousands of sequences?

Train / val / test split

We need to know whether our model has truly learned biological patterns or just memorized the training data. Splitting the data lets us monitor learning during training and reserve a completely untouched set for a final, honest evaluation.

Think of it like studying for an exam:

Split	%	Analogy	Purpose
Train	72%	Homework problems	Model learns from this data
Validation	8%	Practice tests	Monitor for overfitting; tune hyperparameters
Test	20%	Final exam	One-shot, unbiased performance estimate

Warning

Just like you shouldn’t see the final exam before test day, the test set is never touched until the very end.

We achieve this in two steps: first reserve 20% for test, then split the remainder 90/10 into train and val. The code below does exactly that and converts the arrays to PyTorch tensors.

from sklearn.model_selection import train_test_split

X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42)
X_train, X_val,  y_train, y_val  = train_test_split(X_train, y_train, test_size=0.1, random_state=42)

def to_tensor(arr_X, arr_y):
    # Conv1d expects (batch, channels, length) — unsqueeze adds the channel dim
    return (torch.tensor(arr_X).unsqueeze(1).to(device),
            torch.tensor(arr_y).to(device))

X_train_t, y_train_t = to_tensor(X_train, y_train)
X_val_t,   y_val_t   = to_tensor(X_val,   y_val)
X_test_t,  y_test_t  = to_tensor(X_test,  y_test)

print(f"Train: {X_train_t.shape},  Val: {X_val_t.shape},  Test: {X_test_t.shape}")

Train: torch.Size([1440, 1, 100]),  Val: torch.Size([160, 1, 100]),  Test: torch.Size([400, 1, 100])

Part 4: Build and Train the CNN

Define the model

One conv layer (8 filters, width 7) → ReLU → max pool → linear classifier with 2 outputs (spike / no spike).

class SpikeCNN(nn.Module):
    def __init__(self, n_filters=8, kernel_size=7):
        super().__init__()   # required boilerplate for every PyTorch model class
        self.conv1 = nn.Conv1d(in_channels=1, out_channels=n_filters, kernel_size=kernel_size)
        self.pool  = nn.MaxPool1d(kernel_size=2)
        # After conv (kernel=7): 100 - 7 + 1 = 94 → after pool: 94 // 2 = 47
        conv_out_len = (SEQ_LEN - kernel_size + 1) // 2
        self.fc = nn.Linear(n_filters * conv_out_len, 2)

    def forward(self, x):
        x = self.pool(F.relu(self.conv1(x)))
        x = x.view(x.size(0), -1)   # flatten before the linear layer
        return self.fc(x)

model = SpikeCNN(n_filters=8, kernel_size=7).to(device)
print(f"Model parameters: {sum(p.numel() for p in model.parameters())}")
print(model)

Model parameters: 818
SpikeCNN(
  (conv1): Conv1d(1, 8, kernel_size=(7,), stride=(1,))
  (pool): MaxPool1d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
  (fc): Linear(in_features=376, out_features=2, bias=True)
)

Exercise: count the parameters manually

conv1: (1 × 7 + 1) × 8 = ?
fc: length after pool is (100 − 7 + 1) // 2 = 47, so (8 × 47 + 1) × 2 = ?
Total?

Training loop

The optimizer (Adam) adjusts the model’s weights to minimize the loss function (CrossEntropyLoss, which measures how far the predicted class probabilities are from the true labels). Each pass through the data is one epoch. We log training loss and validation accuracy to watch for overfitting.

def train(model, X_tr, y_tr, X_val, y_val, n_epochs=30, lr=1e-3):
    optimizer = torch.optim.Adam(model.parameters(), lr=lr)
    loss_fn   = nn.CrossEntropyLoss()
    history   = {'train_loss': [], 'val_loss': [], 'val_acc': []}

    for epoch in range(n_epochs):
        model.train()          # enable training mode
        optimizer.zero_grad()  # clear old gradients
        loss = loss_fn(model(X_tr), y_tr)  # forward pass
        loss.backward()        # compute gradients
        optimizer.step()       # update weights
        history['train_loss'].append(loss.item())

        model.eval()           # disable dropout, batch norm tracking, etc.
        with torch.no_grad():  # skip gradient tracking
            val_logits = model(X_val)
            val_loss   = loss_fn(val_logits, y_val).item()
            val_acc    = (val_logits.argmax(1) == y_val).float().mean().item()
        history['val_loss'].append(val_loss)
        history['val_acc'].append(val_acc)

        if (epoch + 1) % 5 == 0:
            print(f"Epoch {epoch+1:3d} | train_loss={loss.item():.4f} "
                  f"| val_loss={val_loss:.4f} | val_acc={val_acc:.3f}")

    return history

history = train(model, X_train_t, y_train_t, X_val_t, y_val_t, n_epochs=50)

Epoch   5 | train_loss=0.6761 | val_loss=0.6710 | val_acc=0.744
Epoch  10 | train_loss=0.6613 | val_loss=0.6564 | val_acc=0.869
Epoch  15 | train_loss=0.6449 | val_loss=0.6398 | val_acc=0.938
Epoch  20 | train_loss=0.6268 | val_loss=0.6216 | val_acc=0.938
Epoch  25 | train_loss=0.6069 | val_loss=0.6014 | val_acc=0.962
Epoch  30 | train_loss=0.5852 | val_loss=0.5793 | val_acc=0.975
Epoch  35 | train_loss=0.5620 | val_loss=0.5555 | val_acc=0.975
Epoch  40 | train_loss=0.5373 | val_loss=0.5303 | val_acc=0.981
Epoch  45 | train_loss=0.5116 | val_loss=0.5040 | val_acc=0.981
Epoch  50 | train_loss=0.4850 | val_loss=0.4769 | val_acc=0.981

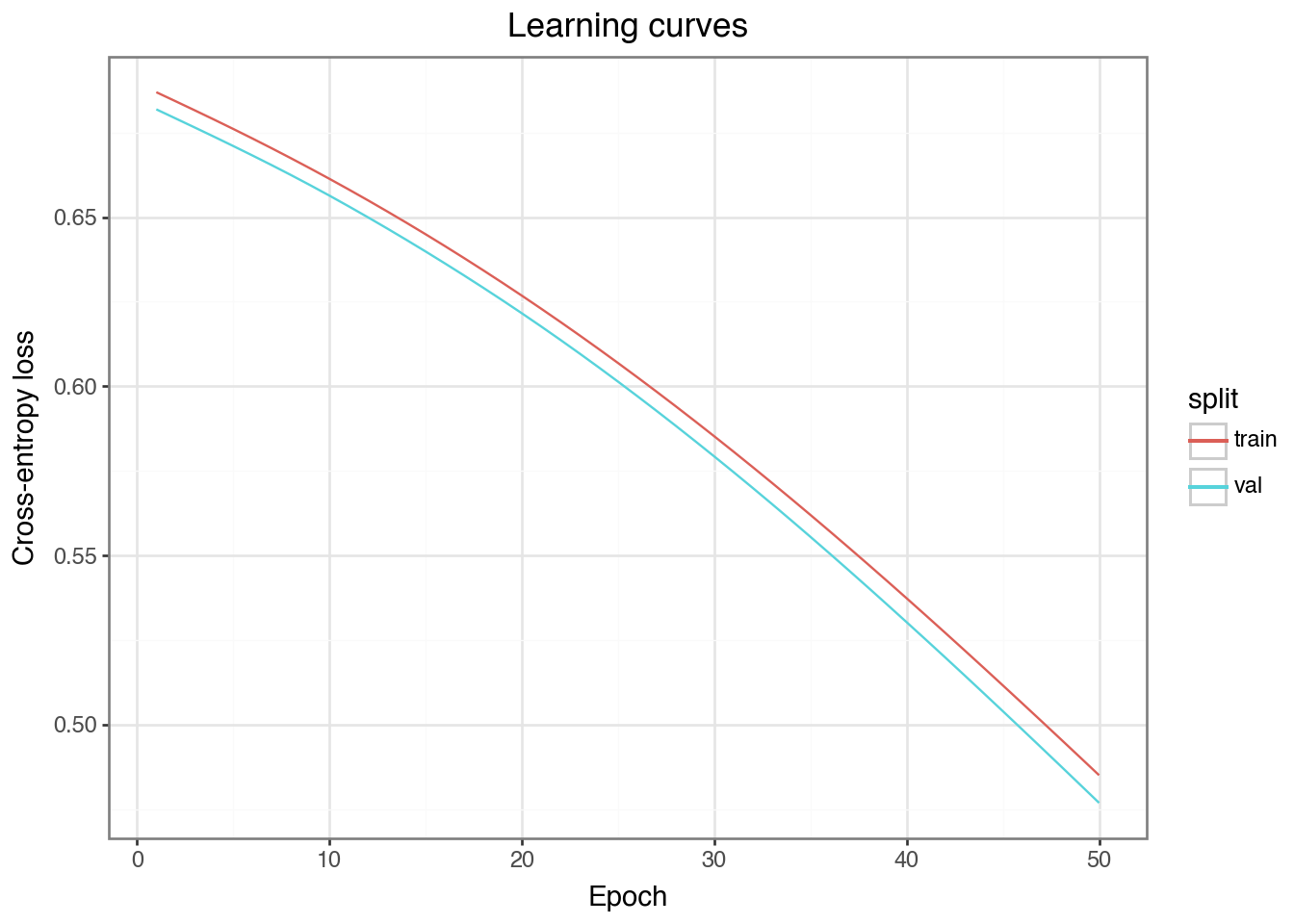

Plot the learning curves

Discuss: Do train and val loss track each other? If val loss starts rising while train loss keeps falling, that is the signature of overfitting.

epochs = list(range(1, len(history['train_loss']) + 1))
curve_df = pd.DataFrame({
    'epoch': epochs * 2,
    'loss':  history['train_loss'] + history['val_loss'],
    'split': ['train'] * len(epochs) + ['val'] * len(epochs)
})

(ggplot(curve_df, aes(x='epoch', y='loss', color='split'))
 + geom_line()
 + theme_bw()
 + labs(title="Learning curves", x="Epoch", y="Cross-entropy loss"))

Evaluate on the test set

Discuss: How does test accuracy compare to validation accuracy? A large gap suggests the model overfit even to the validation set.

model.eval()
with torch.no_grad():
    test_acc = (model(X_test_t).argmax(1) == y_test_t).float().mean().item()
print(f"Test accuracy: {test_acc:.3f}")

Test accuracy: 0.985

Exercise

Try n_filters=2 and retrain. Does accuracy drop? Why? Then try n_filters=32 — does it improve?

Part 5: What Did the Filters Learn?

DNA connection: in notebook-03, these same filter weights become sequence motifs. We’ll convert them to position weight matrices and compare to known TF binding motifs.

A key advantage of CNNs is interpretability — each filter is a small weight vector we can visualize directly.

# detach() removes gradient tracking, .cpu() moves to CPU — both needed before converting to numpy
filters = model.conv1.weight.detach().cpu().numpy()  # shape: (n_filters, 1, kernel_size)
n_filters, _, kernel_size = filters.shape

filter_df = pd.DataFrame({
    'position': list(range(kernel_size)) * n_filters,
    'weight':   filters[:, 0, :].flatten().tolist(),
    'filter':   [f'filter {i}' for i in range(n_filters) for _ in range(kernel_size)]
})

(ggplot(filter_df, aes(x='position', y='weight'))
 + geom_col()
 + facet_wrap('~filter', ncol=4)
 + theme_bw()
 + labs(title="Learned filter weights", x="Position within kernel", y="Weight"))

Question

The spike pattern was [0, 0.3, 0.8, 1.0, 0.8, 0.3, 0]. Can you identify which filter(s) learned a shape similar to it? Which learned an inverted version, and why might that also be useful?

Summary

Concept	What we did
1D convolution	Slid a filter over a signal, computed a feature map
Output shape	L - k + 1 (no padding, stride 1)
Shared weights	Same filter at every position → position-independent detection
ReLU + MaxPool	Non-linearity + dimensionality reduction
Multiple filters	Each learns a different feature
Filter visualization	Inspect what pattern each filter responds to

What’s next

In notebook-03 we apply these exact mechanics to real DNA sequences. Here is what changes:

	This notebook	Notebook-03
Input	1-channel numeric signal	4-channel one-hot DNA (A/C/G/T)
Task	Classification (spike yes/no)	Regression (predict a score)
Pattern	Fixed spike shape	Sequence motifs (e.g. TAT, GCG)
Batching	Full dataset in one pass	Mini-batches via `DataLoader`
Filters reveal	Spike-shaped weight vectors	Sequence logos

Everything else — Conv1d, ReLU, pooling, the training loop, filter visualization — carries over directly.

--- title: "02 · What Are Convolutional Neural Networks?" author: Haky Im date: '2026-04-01' date-modified: last-modified categories: - notebook execute: eval: true draft: false jupyter: kernelspec: name: "conda-env-gene46100-dna-cnn-py" language: "python" display_name: "gene46100-dna-cnn" --- [Jupyter notebook in Colab](https://drive.google.com/file/d/1IyGrYHr9Y-q5POUmK3kxDHAZygY6fzOo/view?usp=sharing) > **Note:** If the notebook doesn't render correctly, click **Open with → Google Colaboratory** in the top-right of the Google Drive preview. # Learning Objectives 1. Understand what a **1D convolution** does: filter, stride, output shape 2. See how **shared weights** create translation invariance 3. Build a **CNN in PyTorch** with `Conv1d`, ReLU, and pooling 4. Train a CNN to detect a pattern in a synthetic signal 5. **Visualize** what a learned filter responds to This notebook uses a pure numerical signal — no DNA yet. The same mechanics apply exactly when we switch to DNA sequences in notebook-03. ## Install and load packages ```{python} if False: %pip install torch plotnine numpy scikit-learn ``` ```{python} import numpy as np import torch from torch import nn import torch.nn.functional as F from plotnine import ggplot, aes, geom_line, geom_tile, facet_wrap, labs, theme_bw, geom_col import pandas as pd # use GPU if available (cuda = NVIDIA, mps = Apple Silicon), otherwise CPU if torch.cuda.is_available(): device = torch.device('cuda') elif hasattr(torch.backends, 'mps') and torch.backends.mps.is_available(): device = torch.device('mps') else: device = torch.device('cpu') print(f"Using device: {device}") ``` # Part 1: What Does Convolution Do? > **DNA connection:** a CNN filter sliding over a signal is exactly the same operation as scanning a sequence for a transcription factor binding motif. The filter *learns* the motif shape from data. ## The core idea In a fully connected layer, every input connects to every output — $N \times M$ weights. In a **convolutional layer**, a small **filter** (also called a kernel) slides across the input, producing one output value per position using the **same weights** at every position. ``` Input: [x1 x2 x3 x4 x5 x6 x7 x8] Filter: [w1 w2 w3] (kernel_size = 3) Step 1: out[0] = x1*w1 + x2*w2 + x3*w3 Step 2: out[1] = x2*w1 + x3*w2 + x4*w3 Step 3: out[2] = x3*w1 + x4*w2 + x5*w3 ... ``` The filter **slides** across the input. At each position it computes a weighted sum. The same weights $[w_1, w_2, w_3]$ are used everywhere — this is **weight sharing**. ## Output length formula For an input of length $L$, kernel size $k$, stride $s=1$, no padding: $$\text{output length} = L - k + 1$$ For $L=8$, $k=3$: output length $= 8 - 3 + 1 = 6$. ## Convolution by hand Let's implement this manually to see exactly what `Conv1d` does internally. ```{python} # A tiny input signal and a filter signal = np.array([0.0, 0.2, 0.8, 1.0, 0.9, 0.3, 0.1, 0.0]) filt = np.array([-1.0, 0.0, 1.0]) # detects a rising edge: computes signal[i+2] - signal[i] # Manually slide the filter across the signal output = [] for i in range(len(signal) - len(filt) + 1): val = np.dot(signal[i : i + len(filt)], filt) output.append(val) print("Input length :", len(signal)) print("Filter length:", len(filt)) print("Output length:", len(output)) # 8 - 3 + 1 = 6 print("Output values:", np.round(output, 2)) ``` > **Discuss:** The output is large and positive where the signal rises — `[-1, 0, 1]` computes `signal[i+2] - signal[i]`. Changing the filter weights detects different patterns. Plotting input and filter output side by side shows where the rising-edge filter fires. ```{python} # Plot input and filter output together offset = (len(filt) - 1) / 2 # center the shorter output on the input axis plot_df = pd.DataFrame({ 'position': list(range(len(signal))) + [i + offset for i in range(len(output))], 'value': list(signal) + output, 'series': ['input signal'] * len(signal) + ['filter output'] * len(output) }) (ggplot(plot_df, aes(x='position', y='value')) + geom_line() + facet_wrap('~series', ncol=1, scales='free_y') + theme_bw() + labs(title="Input signal and rising-edge filter output", x="Position", y="Value")) ``` ### Exercise Change `filt` to `[1.0, 1.0, 1.0]` (a smoothing/averaging filter). What does the output represent now? ## Multiple filters A conv layer typically has **many filters**, each learning to detect a different feature. The output has one channel per filter. ``` Input: shape (batch, 1, seq_len) Conv1d: n_filters kernels → shape (batch, n_filters, out_len) ``` This gives us a **feature map**: at each position, how strongly did each feature appear? # Part 2: Conv1d in PyTorch > **Note on shapes:** `Conv1d` expects input as `(batch, channels, length)`. The channel dimension comes second — a common source of confusion. For a single numeric signal, `channels=1`. For one-hot DNA, `channels=4`. ## Shapes and parameters ```{python} # in_channels=1 (one signal), out_channels=4 (four filters), kernel_size=5 conv = nn.Conv1d(in_channels=1, out_channels=4, kernel_size=5) # Each filter has (in_channels * kernel_size) weights + 1 bias → times out_channels n_params = sum(p.numel() for p in conv.parameters()) print(f"Parameters: {n_params}") # (1 * 5 + 1) * 4 = 24 x = torch.randn(1, 1, 50) # batch=1, channels=1, length=50 out = conv(x) print(f"Input shape: {x.shape}") print(f"Output shape: {out.shape}") # (1, 4, 46) = 50 - 5 + 1 = 46 ``` > **Discuss:** 4 filters of size 5 on a length-50 input gives output shape `(1, 4, 46)` with only 24 parameters total — far fewer than a fully connected layer would need. ### Exercise Change `kernel_size` to 10 and `out_channels` to 8. Before running: (1) predict the output shape, (2) predict the number of parameters. Then verify. ## Adding ReLU and pooling Stacking ReLU and max pooling after conv shows how each step changes the tensor shape. ```{python} x = torch.randn(1, 1, 50) conv = nn.Conv1d(in_channels=1, out_channels=4, kernel_size=5) pool = nn.MaxPool1d(kernel_size=2) after_conv = F.relu(conv(x)) after_pool = pool(after_conv) print(f"After conv+relu: {after_conv.shape}") # (1, 4, 46) print(f"After maxpool: {after_pool.shape}") # (1, 4, 23) ``` > **Discuss:** `MaxPool1d(kernel_size=2)` takes the max of every 2 values, halving the length. This reduces dimensionality and makes detection robust to small shifts — if the pattern moves by 1 position, the max value is unchanged. # Part 3: The Task — Detect a Pattern Anywhere in a Signal Now that we know what a conv layer does mechanically, here's why it's the right tool: a filter that has learned to recognize a pattern will fire **wherever that pattern appears** — at position 5 or position 80, the same weights do the work. An MLP has no such guarantee; it would need to learn a separate detector for every possible position. We'll create a dataset where some signals contain a specific "spike" embedded at a **random position**. The CNN must detect it regardless of where it appears — this is **translation invariance** in action. > **DNA connection:** a transcription factor binding motif can appear anywhere in a 300 bp sequence. The CNN doesn't need to know where — it scans. ## Generate the data We generate 2000 sequences of length 100: half contain the spike pattern embedded at a random position, half are pure noise. ```{python} np.random.seed(42) torch.manual_seed(42) SEQ_LEN = 100 SPIKE = np.array([0.0, 0.3, 0.8, 1.0, 0.8, 0.3, 0.0]) # pattern to detect N_SAMPLES = 2000 def make_dataset(n_samples, seq_len, spike, noise_std=0.1): X = np.random.normal(0, noise_std, size=(n_samples, seq_len)).astype(np.float32) # float32 = PyTorch default y = np.zeros(n_samples, dtype=np.int64) for i in range(n_samples // 2): # first half → positive class pos = np.random.randint(0, seq_len - len(spike)) # pick a random position X[i, pos : pos + len(spike)] += spike # inject the spike at that position y[i] = 1 return X, y X, y = make_dataset(N_SAMPLES, SEQ_LEN, SPIKE) print(f"X shape: {X.shape}, class balance: {y.mean():.2f}") ``` ## Visualize a few examples ```{python} examples = pd.DataFrame({ 'position': list(range(SEQ_LEN)) * 2, 'amplitude': list(X[0]) + list(X[N_SAMPLES // 2]), 'label': ['positive (spike present)'] * SEQ_LEN + ['negative (noise only)'] * SEQ_LEN }) (ggplot(examples, aes(x='position', y='amplitude')) + geom_line() + facet_wrap('~label', ncol=1) + theme_bw() + labs(title="Example signals", x="Position", y="Amplitude")) ``` > **Discuss:** Can you spot the spike in the positive example? How hard would it be to find it visually across thousands of sequences? ## Train / val / test split We need to know whether our model has truly learned biological patterns or just memorized the training data. Splitting the data lets us monitor learning during training and reserve a completely untouched set for a final, honest evaluation. Think of it like studying for an exam: | Split | % | Analogy | Purpose | |------------|-----|------------------|-----------------------------------------------| | Train | 72% | Homework problems | Model learns from this data | | Validation | 8% | Practice tests | Monitor for overfitting; tune hyperparameters | | Test | 20% | Final exam | One-shot, unbiased performance estimate | ::: {.callout-warning} Just like you shouldn't see the final exam before test day, the test set is never touched until the very end. ::: We achieve this in two steps: first reserve 20% for test, then split the remainder 90/10 into train and val. The code below does exactly that and converts the arrays to PyTorch tensors. ```{python} from sklearn.model_selection import train_test_split X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42) X_train, X_val, y_train, y_val = train_test_split(X_train, y_train, test_size=0.1, random_state=42) def to_tensor(arr_X, arr_y): # Conv1d expects (batch, channels, length) — unsqueeze adds the channel dim return (torch.tensor(arr_X).unsqueeze(1).to(device), torch.tensor(arr_y).to(device)) X_train_t, y_train_t = to_tensor(X_train, y_train) X_val_t, y_val_t = to_tensor(X_val, y_val) X_test_t, y_test_t = to_tensor(X_test, y_test) print(f"Train: {X_train_t.shape}, Val: {X_val_t.shape}, Test: {X_test_t.shape}") ``` # Part 4: Build and Train the CNN ## Define the model One conv layer (8 filters, width 7) → ReLU → max pool → linear classifier with 2 outputs (spike / no spike). ```{python} class SpikeCNN(nn.Module): def __init__(self, n_filters=8, kernel_size=7): super().__init__() # required boilerplate for every PyTorch model class self.conv1 = nn.Conv1d(in_channels=1, out_channels=n_filters, kernel_size=kernel_size) self.pool = nn.MaxPool1d(kernel_size=2) # After conv (kernel=7): 100 - 7 + 1 = 94 → after pool: 94 // 2 = 47 conv_out_len = (SEQ_LEN - kernel_size + 1) // 2 self.fc = nn.Linear(n_filters * conv_out_len, 2) def forward(self, x): x = self.pool(F.relu(self.conv1(x))) x = x.view(x.size(0), -1) # flatten before the linear layer return self.fc(x) model = SpikeCNN(n_filters=8, kernel_size=7).to(device) print(f"Model parameters: {sum(p.numel() for p in model.parameters())}") print(model) ``` ### Exercise: count the parameters manually 1. `conv1`: `(1 × 7 + 1) × 8` = ? 2. `fc`: length after pool is `(100 − 7 + 1) // 2 = 47`, so `(8 × 47 + 1) × 2` = ? 3. Total? ## Training loop The optimizer (`Adam`) adjusts the model's weights to minimize the loss function (`CrossEntropyLoss`, which measures how far the predicted class probabilities are from the true labels). Each pass through the data is one **epoch**. We log training loss and validation accuracy to watch for overfitting. ```{python} def train(model, X_tr, y_tr, X_val, y_val, n_epochs=30, lr=1e-3): optimizer = torch.optim.Adam(model.parameters(), lr=lr) loss_fn = nn.CrossEntropyLoss() history = {'train_loss': [], 'val_loss': [], 'val_acc': []} for epoch in range(n_epochs): model.train() # enable training mode optimizer.zero_grad() # clear old gradients loss = loss_fn(model(X_tr), y_tr) # forward pass loss.backward() # compute gradients optimizer.step() # update weights history['train_loss'].append(loss.item()) model.eval() # disable dropout, batch norm tracking, etc. with torch.no_grad(): # skip gradient tracking val_logits = model(X_val) val_loss = loss_fn(val_logits, y_val).item() val_acc = (val_logits.argmax(1) == y_val).float().mean().item() history['val_loss'].append(val_loss) history['val_acc'].append(val_acc) if (epoch + 1) % 5 == 0: print(f"Epoch {epoch+1:3d} | train_loss={loss.item():.4f} " f"| val_loss={val_loss:.4f} | val_acc={val_acc:.3f}") return history history = train(model, X_train_t, y_train_t, X_val_t, y_val_t, n_epochs=50) ``` ## Plot the learning curves > **Discuss:** Do train and val loss track each other? If val loss starts rising while train loss keeps falling, that is the signature of overfitting. ```{python} epochs = list(range(1, len(history['train_loss']) + 1)) curve_df = pd.DataFrame({ 'epoch': epochs * 2, 'loss': history['train_loss'] + history['val_loss'], 'split': ['train'] * len(epochs) + ['val'] * len(epochs) }) (ggplot(curve_df, aes(x='epoch', y='loss', color='split')) + geom_line() + theme_bw() + labs(title="Learning curves", x="Epoch", y="Cross-entropy loss")) ``` ## Evaluate on the test set > **Discuss:** How does test accuracy compare to validation accuracy? A large gap suggests the model overfit even to the validation set. ```{python} model.eval() with torch.no_grad(): test_acc = (model(X_test_t).argmax(1) == y_test_t).float().mean().item() print(f"Test accuracy: {test_acc:.3f}") ``` ### Exercise Try `n_filters=2` and retrain. Does accuracy drop? Why? Then try `n_filters=32` — does it improve? # Part 5: What Did the Filters Learn? > **DNA connection:** in notebook-03, these same filter weights become **sequence motifs**. We'll convert them to position weight matrices and compare to known TF binding motifs. A key advantage of CNNs is interpretability — each filter is a small weight vector we can visualize directly. ```{python} # detach() removes gradient tracking, .cpu() moves to CPU — both needed before converting to numpy filters = model.conv1.weight.detach().cpu().numpy() # shape: (n_filters, 1, kernel_size) n_filters, _, kernel_size = filters.shape filter_df = pd.DataFrame({ 'position': list(range(kernel_size)) * n_filters, 'weight': filters[:, 0, :].flatten().tolist(), 'filter': [f'filter {i}' for i in range(n_filters) for _ in range(kernel_size)] }) (ggplot(filter_df, aes(x='position', y='weight')) + geom_col() + facet_wrap('~filter', ncol=4) + theme_bw() + labs(title="Learned filter weights", x="Position within kernel", y="Weight")) ``` ## Question The spike pattern was `[0, 0.3, 0.8, 1.0, 0.8, 0.3, 0]`. Can you identify which filter(s) learned a shape similar to it? Which learned an inverted version, and why might that also be useful? # Summary | Concept | What we did | |---------|-------------| | 1D convolution | Slid a filter over a signal, computed a feature map | | Output shape | $L - k + 1$ (no padding, stride 1) | | Shared weights | Same filter at every position → position-independent detection | | ReLU + MaxPool | Non-linearity + dimensionality reduction | | Multiple filters | Each learns a different feature | | Filter visualization | Inspect what pattern each filter responds to | ## What's next In **notebook-03** we apply these exact mechanics to real DNA sequences. Here is what changes: | | This notebook | Notebook-03 | |---|---|---| | **Input** | 1-channel numeric signal | 4-channel one-hot DNA (A/C/G/T) | | **Task** | Classification (spike yes/no) | Regression (predict a score) | | **Pattern** | Fixed spike shape | Sequence motifs (e.g. TAT, GCG) | | **Batching** | Full dataset in one pass | Mini-batches via `DataLoader` | | **Filters reveal** | Spike-shaped weight vectors | Sequence logos | Everything else — `Conv1d`, ReLU, pooling, the training loop, filter visualization — carries over directly.
